Stainless Steel

Custom Parts

	MFG. Part No.	Description	Our Part No.

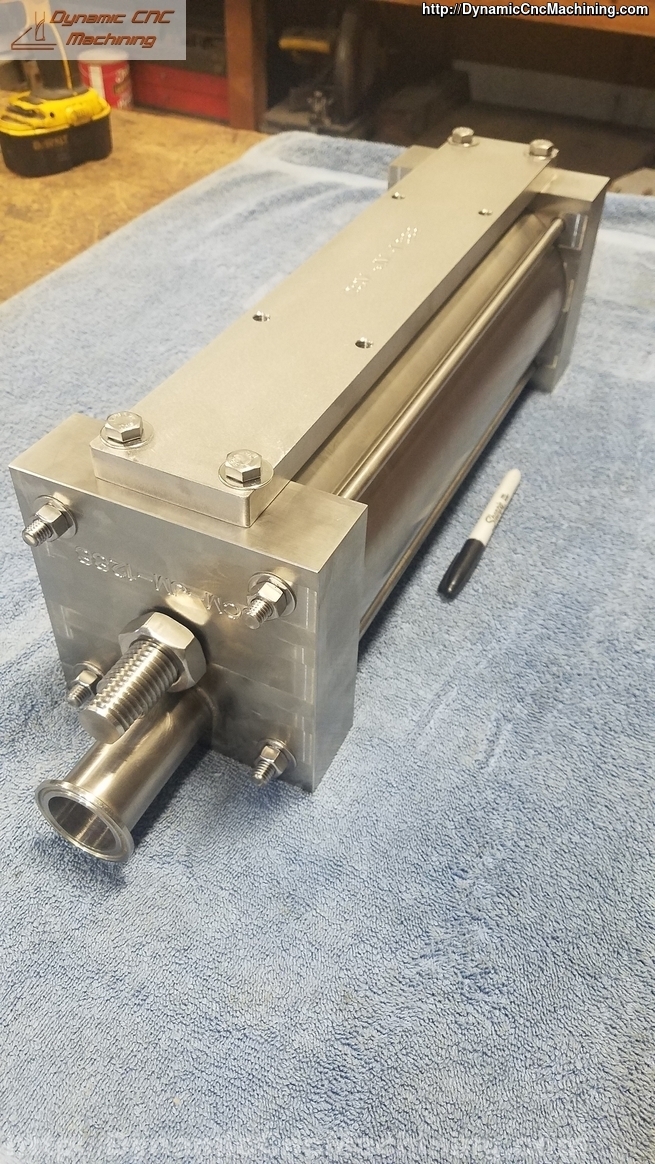

#1	Enlarge Image	Cylinder Assy Stainless steel cylinder assembly with an Acetal internal piston.	DCM-JM-1288

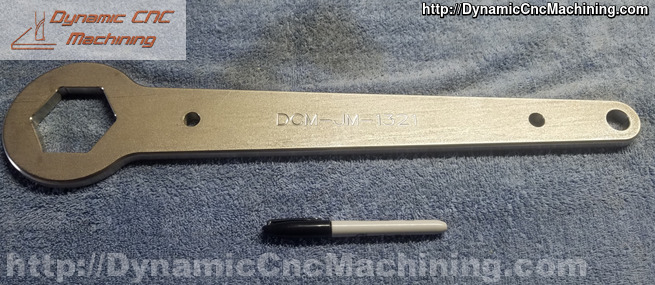

#2	Enlarge Image	Wrench 2 5/16" Stainless steel wrench.	DCM-JM-1321

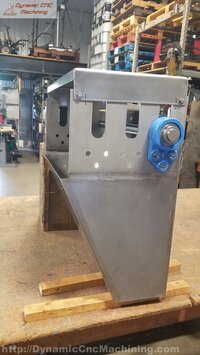

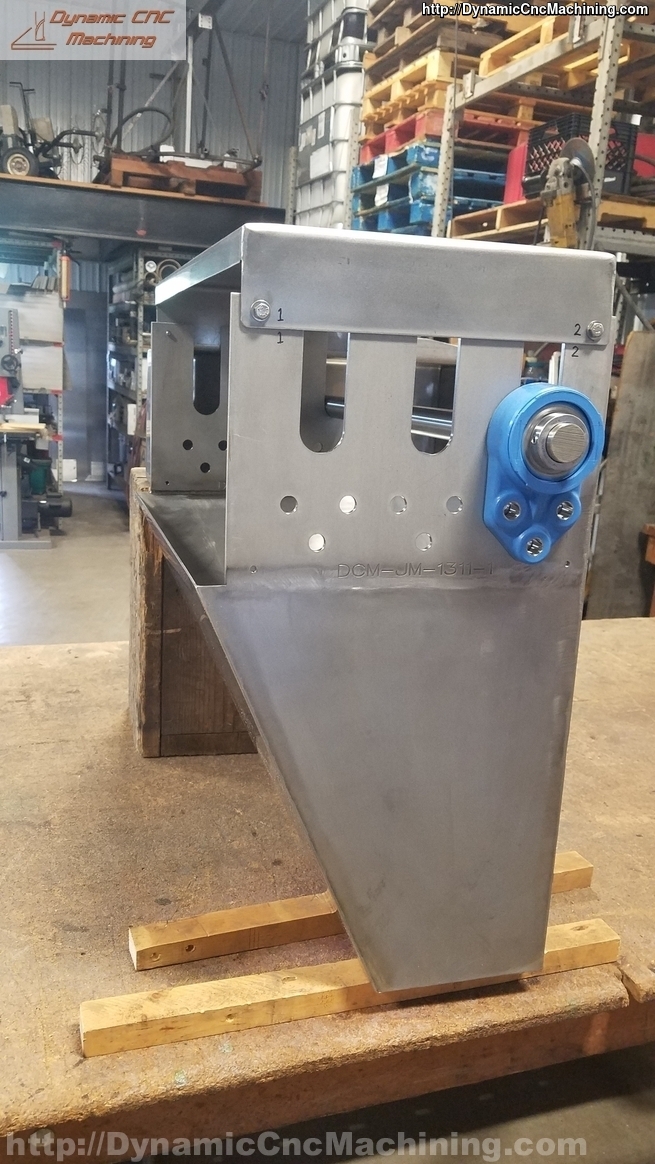

#3	Enlarge Image	Hopper Chute Stainless Steel Hopper Chute for fat trimmings.	DCM-JM-1311

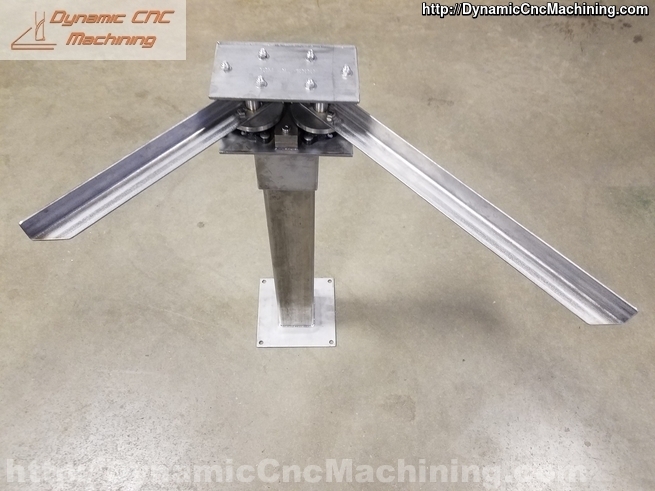

#4	Enlarge Image	Articulating Converyor Arm Assembly Stainless steel articulating conveyor arm assembly.	DCM-DL-1000

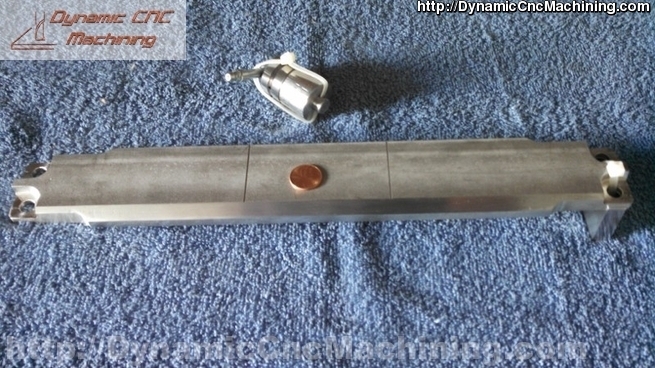

#5	132970 Enlarge Image	Hoegger Press Guide Stainless Steel Hoegger Guide, Width, 102784, 132970, HGR	DCM-JM-1004

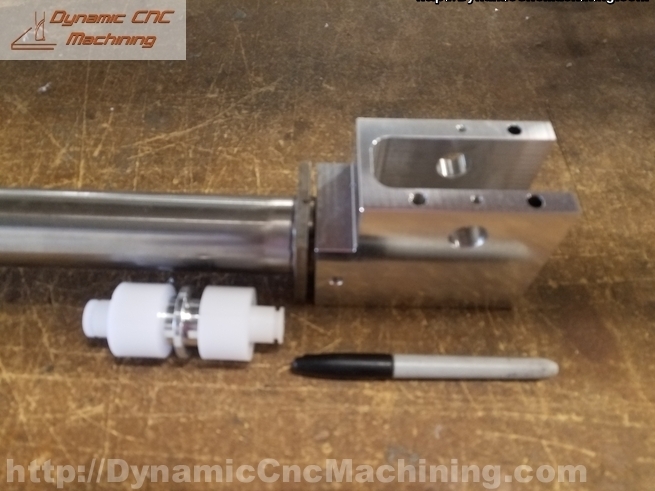

#6	Enlarge Image	S.S. Spreader Tube, Piston S.S. Spreader Tube with Acetal/Aluminum Piston and Aluminum ends for mounting the pulleys.	DCM-JM-1193
#7	Enlarge Image	Stuffer Horn Horn for V-meg Stuffer	3.350 W 1.650 T

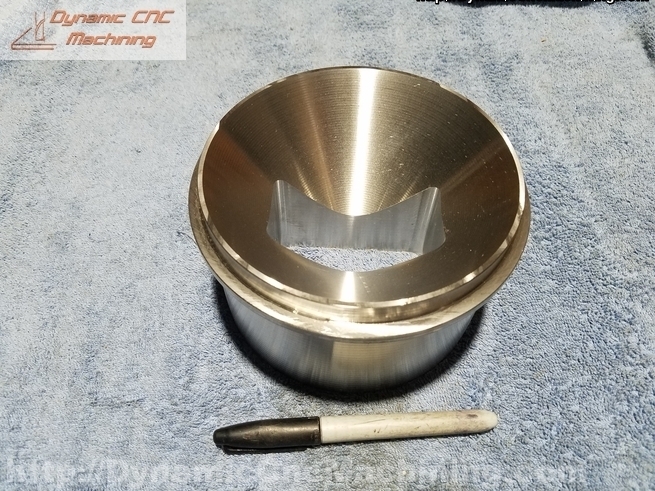

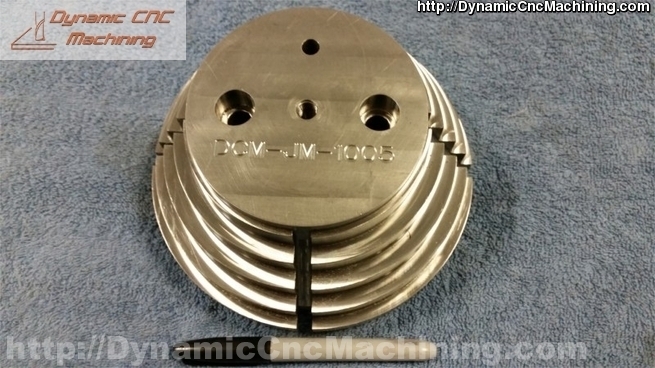

#8	HSE250-064-324 Enlarge Image	Pressing Block Pressing Block, 7" O.D. stainless steel cone	DCM-JM-1005

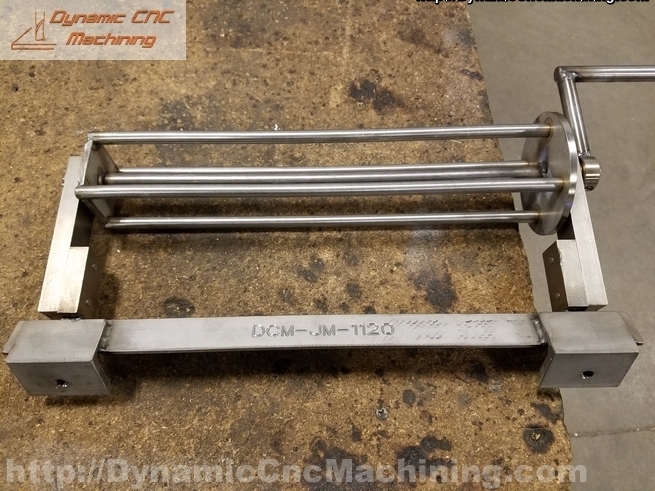

#9	Enlarge Image	Crank Assembly	DCM-JM-1120

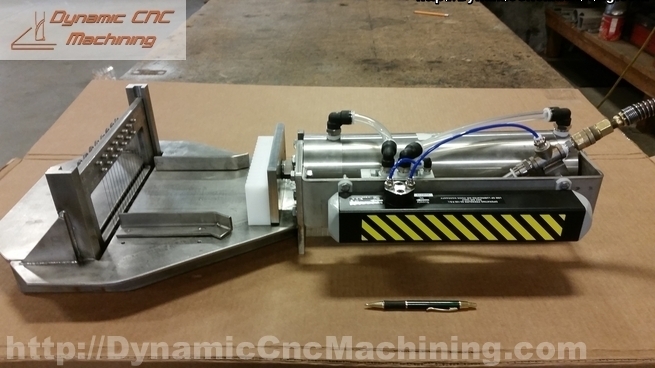

#10	Enlarge Image	Pneumatic Cheese Slicer Pneumatic cheese slicer built for a customer of ours. The slicer harp simply lifts up so a different harp can drop in. The Acetal pusher can be changed by simply removing two bolts. The unit weighs 78 pounds so it can be moved to different locations if needed. The cylinder has an 8" stroke.
#11	Enlarge Image	Cover Shield
#12	Enlarge Image	Scraper
#13	Enlarge Image	Forming Station Assemly
#14	Enlarge Image	Forming Station Assembly
#15	Enlarge Image	Test Cheese Slicer

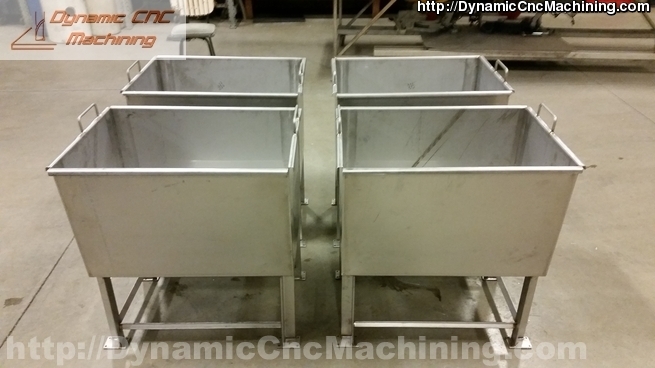

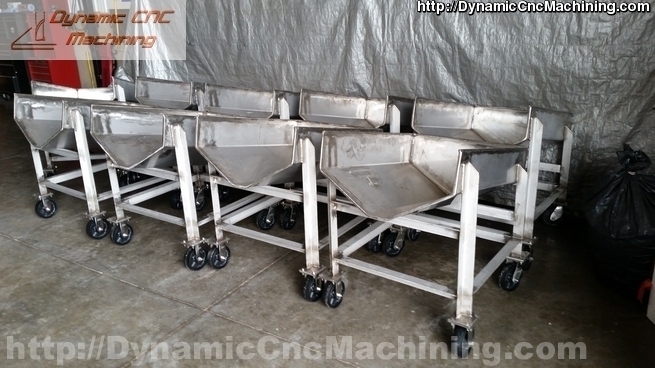

#16	Enlarge Image	Meat Containers
#17	Enlarge Image	Hoegger Press Parts
#18	Enlarge Image	2.50" O.D. Tube Assembly
#19	Enlarge Image	Gripper Strut
#20	Enlarge Image	304 Stainless Parts
#21	Enlarge Image	Stainless Steel Rod Carts
#22	Enlarge Image	Spacer

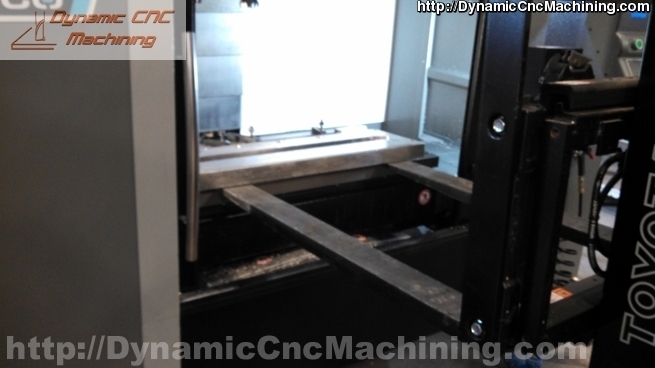

#23	Enlarge Image	Stainless steel plate This is a stainless steel plate that is 2.25" thick 12" wide and 37" long. Needed a forklift to load it into the CNC machine.

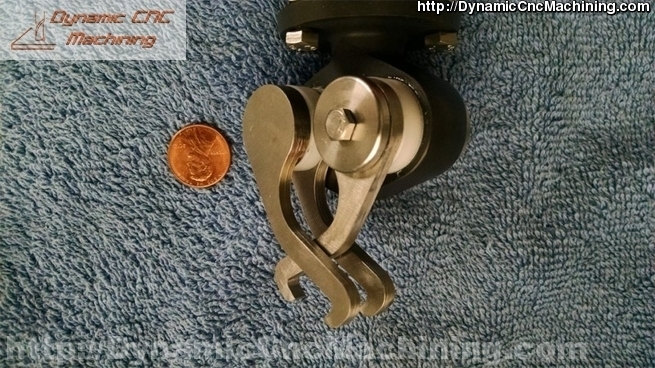

#24	Enlarge Image	Stainless Steel Gripper These are stainless steel grippers that are pneumatically actuated. They grip the stick on an ice cream bar and then lift and move the ice cream bar off the conveyor.

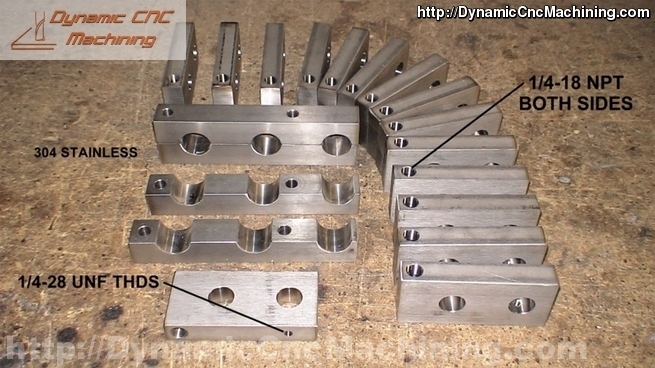

#25	Enlarge Image	Water Jet parts Stainless steel parts with threaded holes and pipe threads.

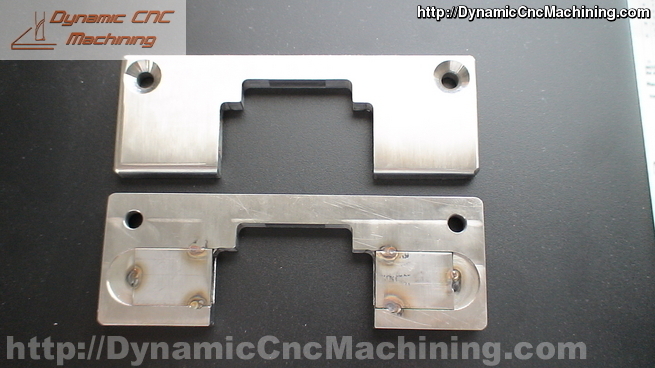

#26	Enlarge Image	End caps on slide rail These were orginally plastic and the customer asked us to make them from 304 stainless and then spot weld the cover on the back.

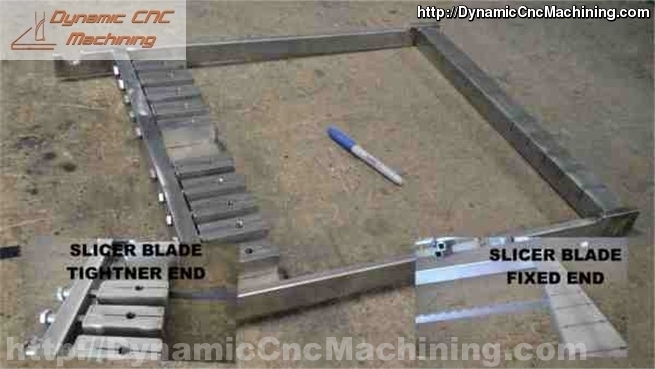

#27	Enlarge Image	Slicer Harp Redesigned the OEM assembly to include 2 more blades while reducing the number of parts by 20

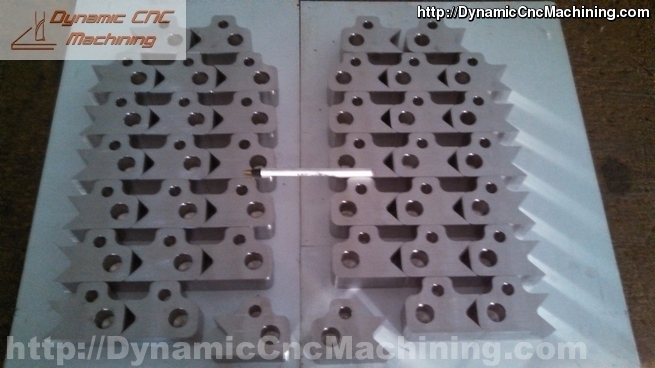

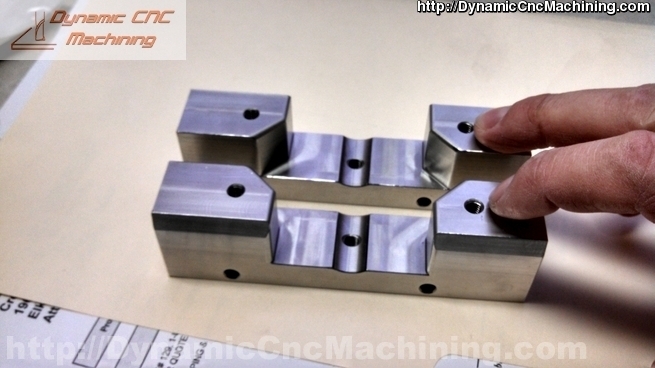

#28	Enlarge Image	Pivot Block 1.50" thick 304 stainless left and right hand parts.
#29	Enlarge Image	Slide Block 1.00" thick block with slots and 3/8-16 threaded hole.

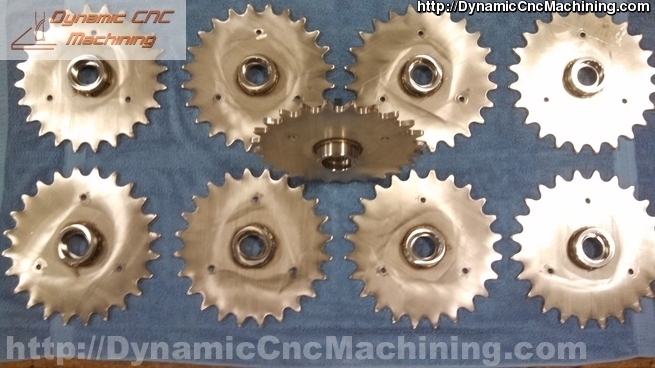

#30	Enlarge Image	Custom made Stainless Steel Sprockets, No. 100 x 24 tooth Sprocket We had a customer that was breaking the teeth on their plastic sprockets so we reverse engineered them and machined them from 304 stainless.
#31	Enlarge Image	Guillotine Cutting Blade This is a Guillotine Cutting Blade. The serrated edges were machined on our Hurco VM10 along with the knife edges and then TIG welded together.

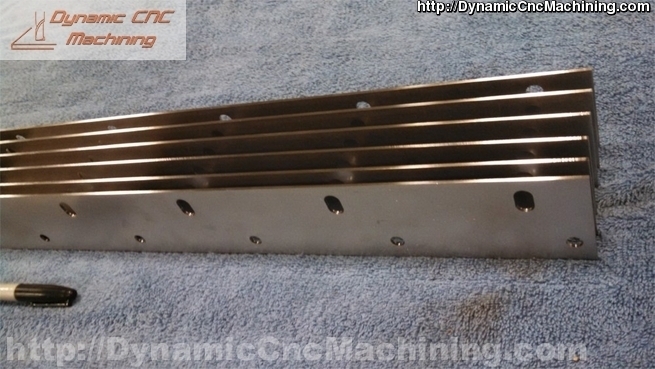

#32	Enlarge Image	Knife Blades These are knife blades made from 304 stainless.

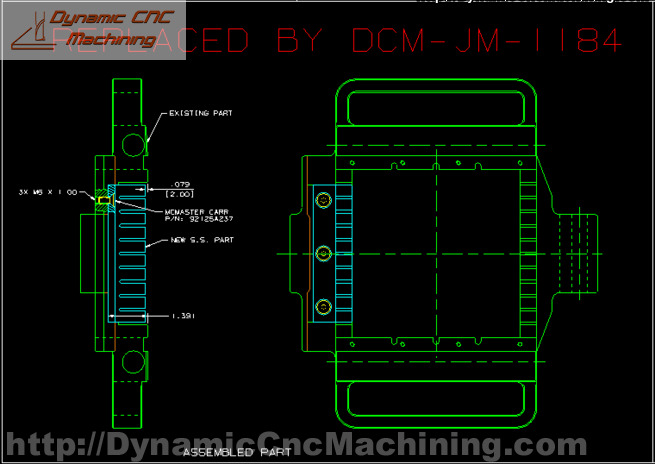

#33	Enlarge Image	Gride Blade Guide	DCM-JM-1111
#34	Enlarge Image	Grid Blade Guide	DCM-JM-1184

Notice: Dynamic CNC Machining makes after market parts. We are not associated with or representing any OEM companies and we are not an authorized dealer or distributor of any OEM companies.
