Aluminum

Custom Parts

	MFG. Part No.	Description	Our Part No.
#1	Enlarge Image	Top Sealing Plate Aluminum Top Sealing Plate	DCM-JM-1327
#2	Enlarge Image	Top Sealing Plate Aluminum Top Sealing Plate	DCM-JM-1327

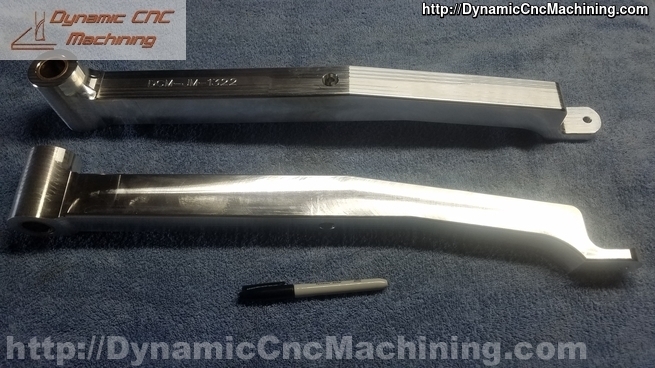

#3	DCM-JM-1322 Enlarge Image	Arm Aluminum Arm for Carton Former machine.
#4	Enlarge Image	Motor Adjustment Slide This is used so you can slide a motor with a pulley back and forth so that the belt tension can be adjusted.	DCM-JM-1272-1
#5	Enlarge Image	Tooling for Multivac machine Forming Grid and Radius Plates	DCM-JBS-1251
#6	Enlarge Image	Tooling for Multivac machine Tooling for the forming end and sealing end of a Multivac machine.

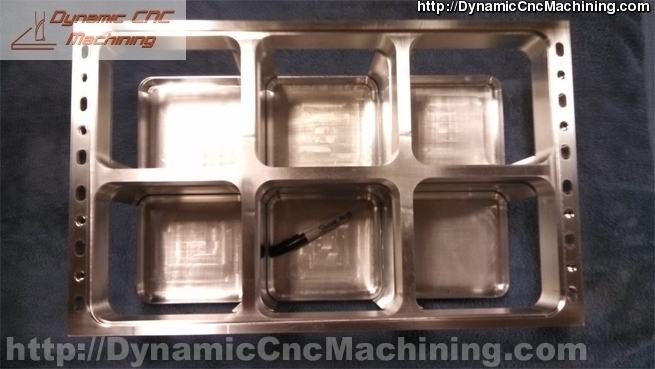

#7	Enlarge Image	Sealing Frame for Multivac Sealing Frame	DCM-JBS-1051-S
#8	Enlarge Image	Box Former Claw
#9	Enlarge Image
#10	DCM-JM-1218 Enlarge Image	Forming Grid with Insert

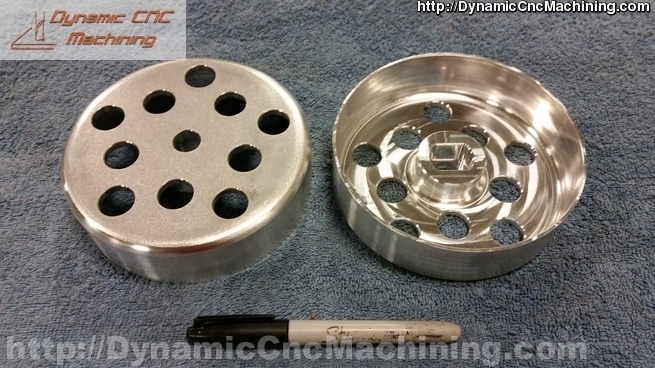

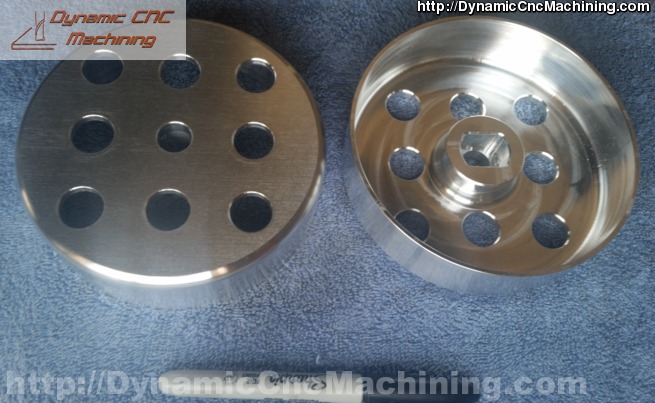

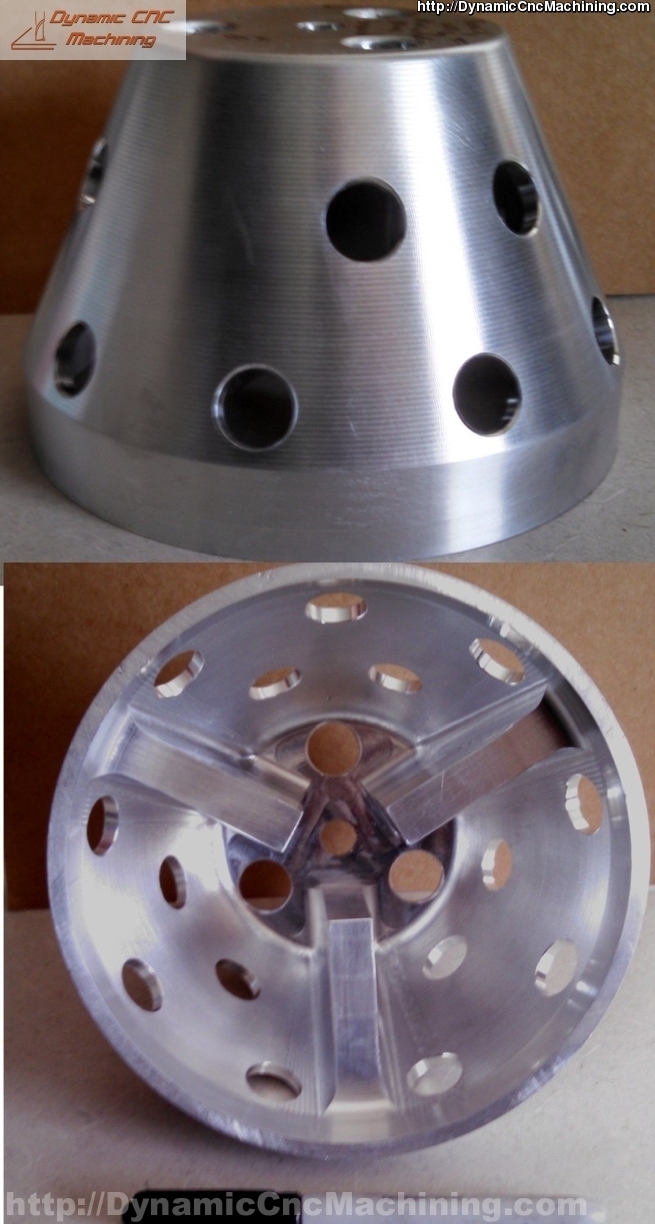

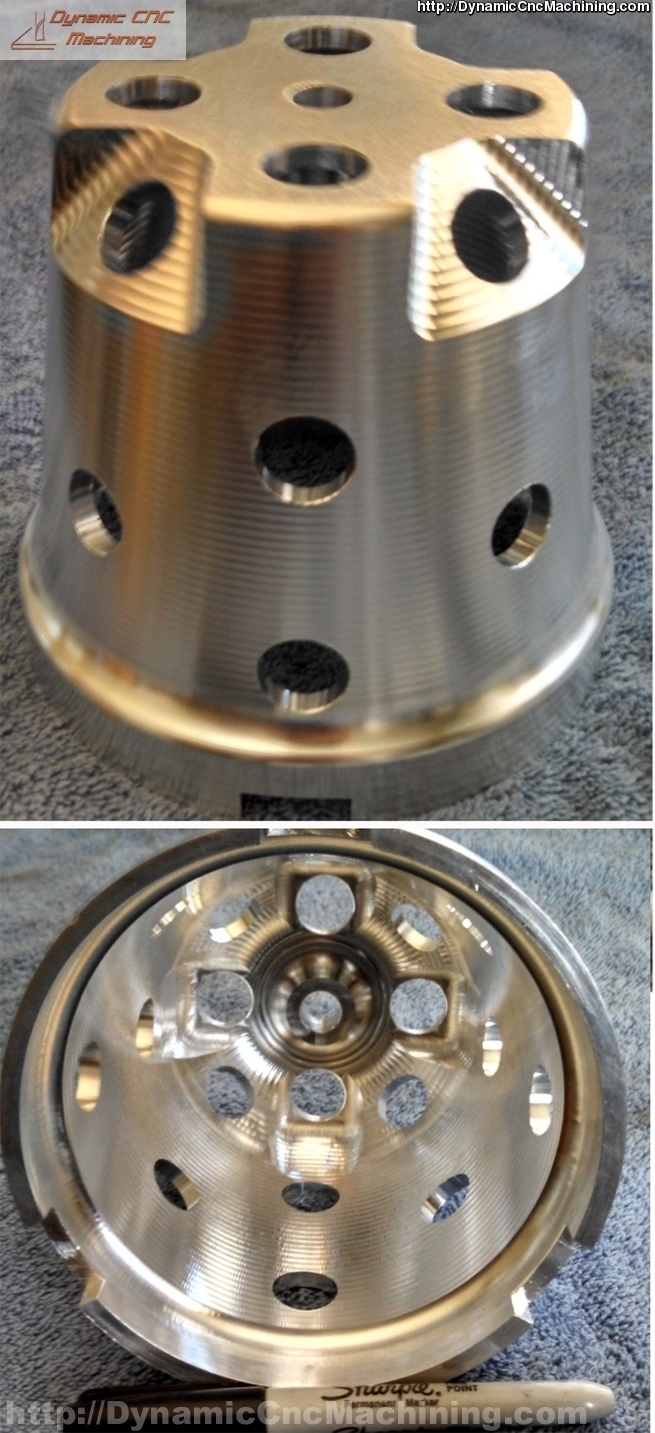

#11	MR12-003 Enlarge Image	Turkey Bell 20 Bores for Impianti Layer Processing Feather Plucker Drum made from solid block of aluminum. Impianti or Prime Equipment OEM P/N: MR12-003	02-005-114
#12	MR10-070 Enlarge Image	10 Bore, Finger, Height Dish for Impianti Layer Processing Feather Plucker Drum made from solid block of aluminum. Impianti or Prime Equipment P/N: MR10-070	02-005-115
#13	MCR5-001 Enlarge Image	Turkey Bell 18 Bores for Impianti Layer Processing Feather Plucker Drum made from solid block of aluminum. Impianti or Prime Equipment OEM P/N: MCR5-001	02-005-130
#14	FUR67623 Enlarge Image	Angled Seal Bar for a Cryovac Machine Angled Seal Bar for Cyrovac 8600	DCM-DP-1000
#15	FUR46614 Enlarge Image	Top Sealbar for Cryovac machine	DCM-FUR-46614
#16	FUR65701 Enlarge Image	Bottom Sealbar for Cryovac machine Fits on Cryovac 8600-14EL	DCM-FUR-65701

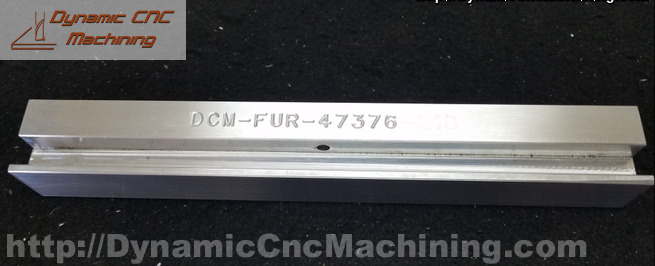

#17	FUR47376 Enlarge Image	Bottom Seal Bar Holder Bottom Seal Bar Holder for Cryovac machine	DCM-FUR-47376
#18	Enlarge Image	Forming Die for Multivac machine This is the back side of the parts.	DCM-JB-1000-F
#19	Enlarge Image	Forming Die for Multivac machine This is the top side of the parts.	DCM-JB-1000-F
#20	Enlarge Image	Forming Die for Multivac machine	DCM-JM-1000-F
#21	Enlarge Image	Insert for Multivac machine	DCM-JM-1000-P

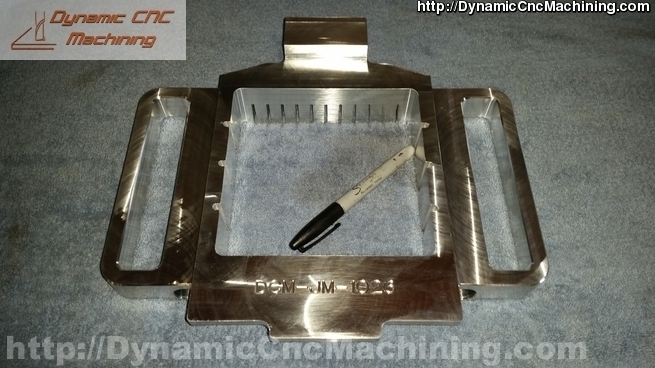

#22	Enlarge Image	Aluminum Front Grid Blade Guide This was a spare part that was reverse engineered and then machined.	DCM-JM-1026

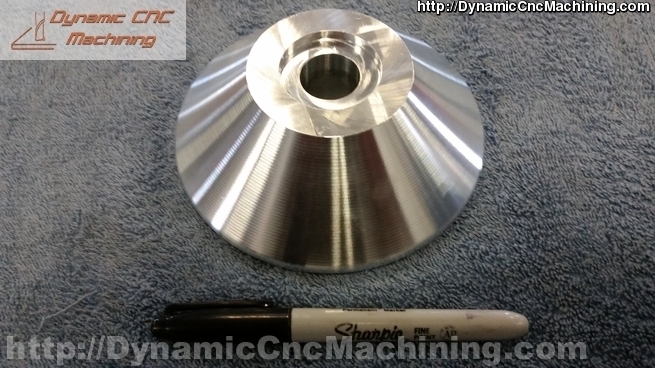

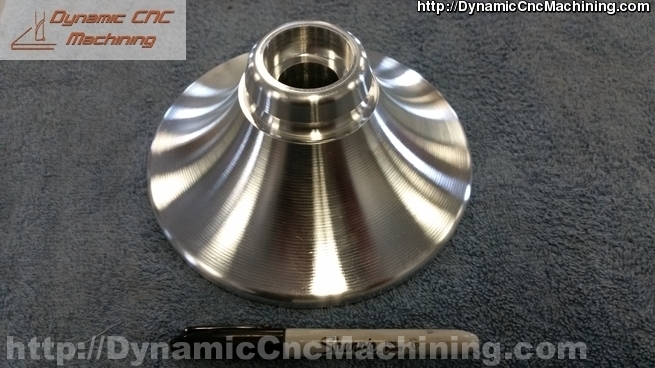

#23	Enlarge Image	Aluminum Cone Aluminum Roller Cone 5.465" dia x 1.812" thick with 86 deg included angle and .95 dia thru hole.	DCM-JM-1047
#24	Enlarge Image	Aluminum Radial Cone Roller 7.000" dia x 3.175" thick with1.171" dia thru hole and a .375" radial groove near the small end of the cone.	DCM-JM-1048

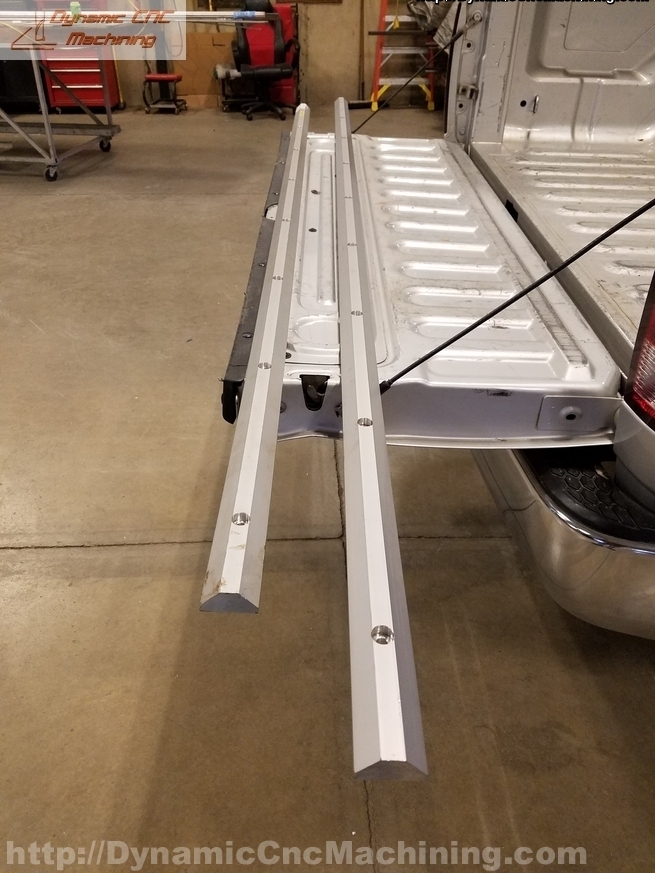

#25	Enlarge Image	Guide Rails These are guide rails that large pulleys ride on.	DCM-JM-1122 & 1123
#26	MR10-069 Enlarge Image	8 Bore, Finger, Height Dish for Impianti Layer Processing Feather Plucker Drum made from solid block of aluminum. Impianti or Prime Equipment P/N: MR10-069. Because we machine these from solid blocks of aluminum they are a lot stronger than the cast parts the OEM make. If your OEM parts are cracking near the center hole and you are tired of replacing them give us a call.	DCM-TSLT-1000
#27	00990.BL00.050.00 Enlarge Image	Aluminum Slide Block	DCM-TSLT-1001

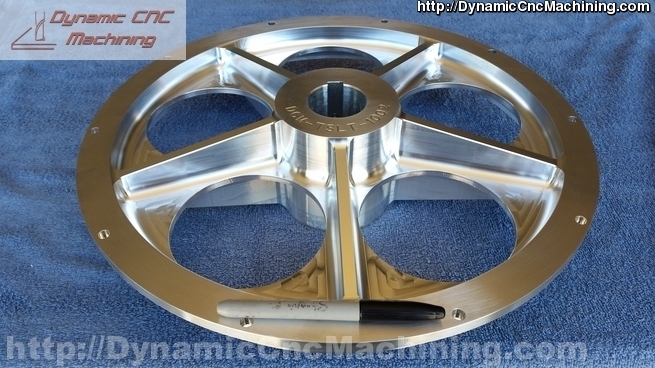

#28	0990.W005.005.00 Enlarge Image	Drive Wheel 400mm, 50mm bore for Meyn Layer Processing Drive wheel for Meyn chain. Meyn OEM P/N:0990.W005.005.00	DCM-TSLT-1002

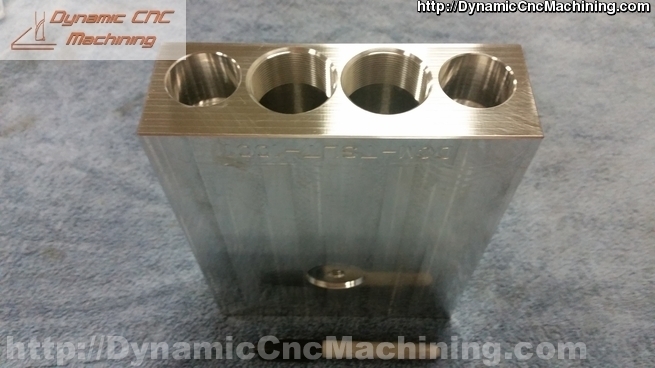

#29	11581934523 Enlarge Image	Valve Block This is a replacement part for Multivac P/N:11581934523	MO184598-01
#30	C27283 Enlarge Image	Aluminum 4" Bracket This is a replacement part for Multivac P/N:C27283	MO275815-01
#31	C26909 Enlarge Image	Aluminum 3 x 4 Gripper This is a replacement part for Multivac P/N:C26909	MO310244-01
#32	Enlarge Image	2 x 8 Die for Multivac machine

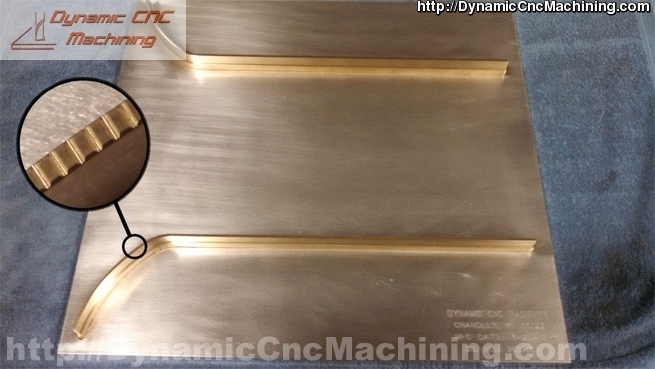

#33	Enlarge Image	RF Die RF die with brass rule
#34	Enlarge Image	Seal Frame Seal Frame for Multivac machine
#35	Enlarge Image	Form Grid Form Grid for Multivac machine

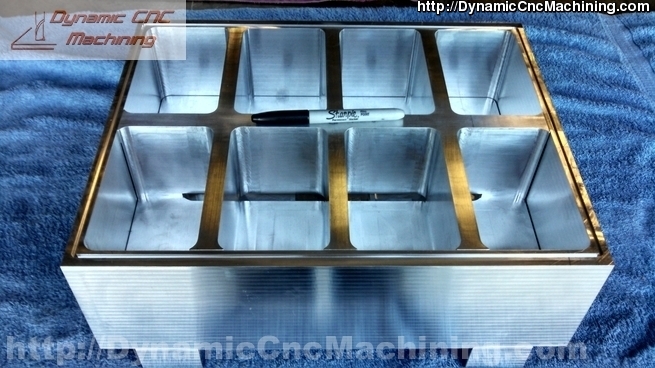

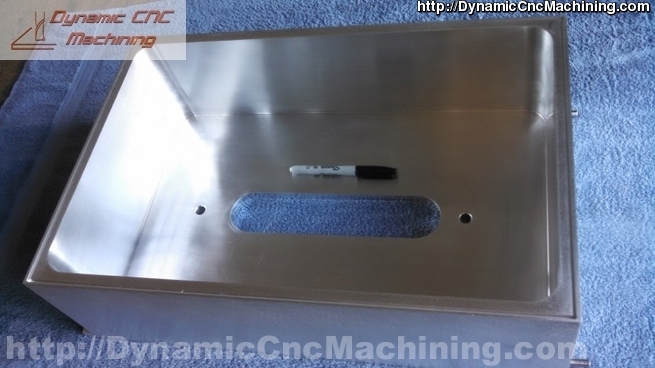

#36	Enlarge Image	Die Box Die Box for Multivac machine
#37	Enlarge Image	Form Grid & Die Box Form Grid slid inside the Die Box
#38	Enlarge Image	End Plates
#39	Enlarge Image	Forming Plates

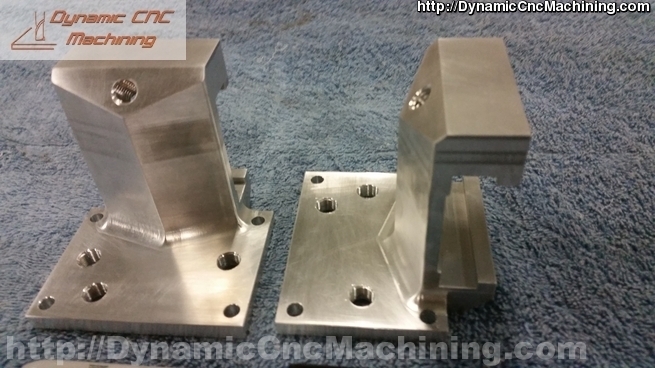

#40	Enlarge Image	End Mounts for a Gizzard Skinner
#41	Enlarge Image	Seal Frame for a packaging machine
#42	Enlarge Image	Die Box for Multivac Machine

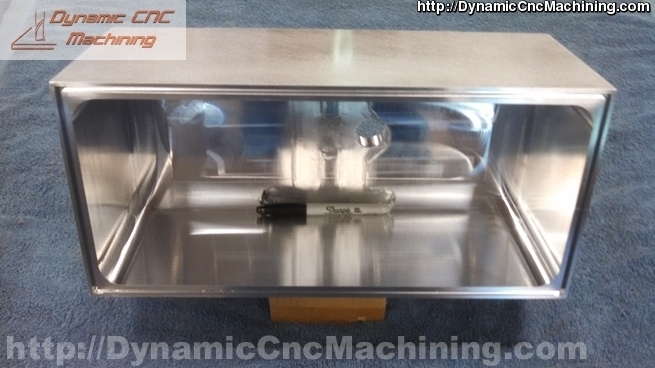

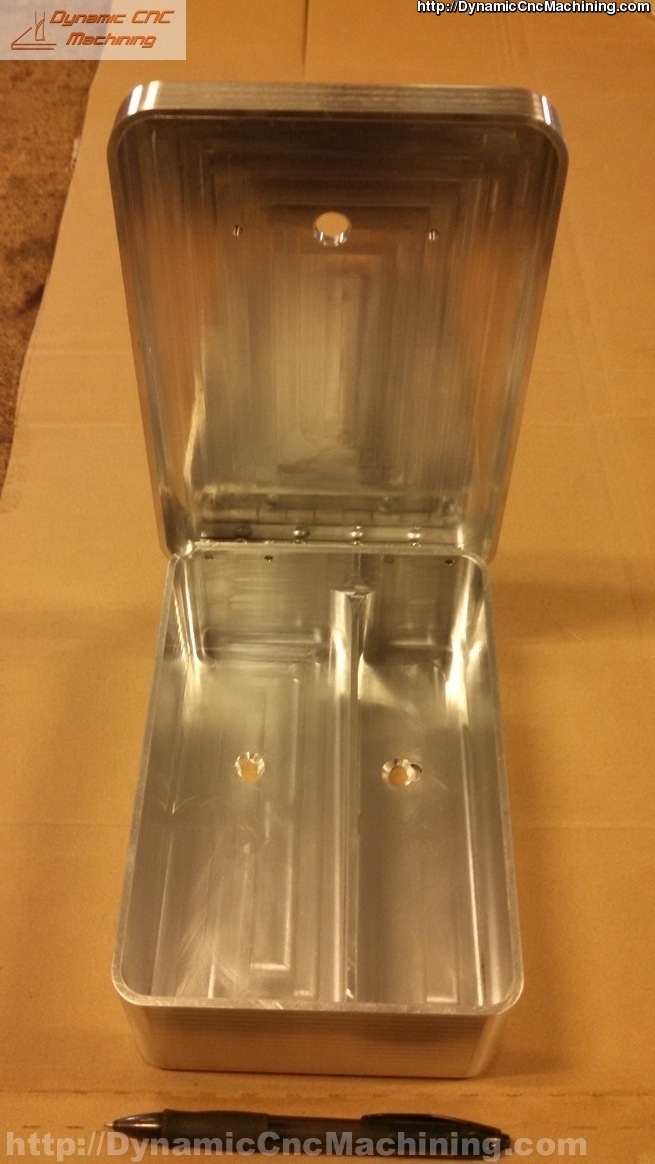

#43	Enlarge Image	Aluminum Box with Cover

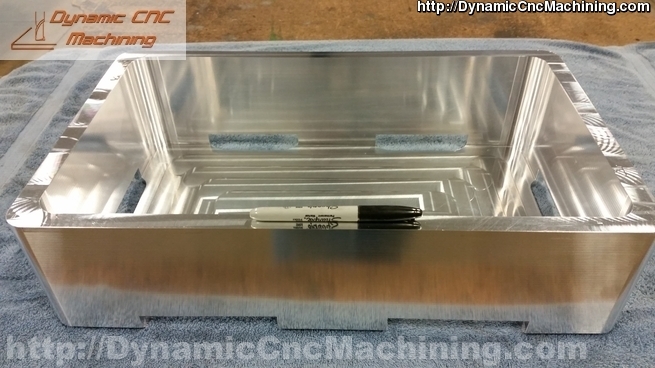

#44	Enlarge Image	Multivac Die Box

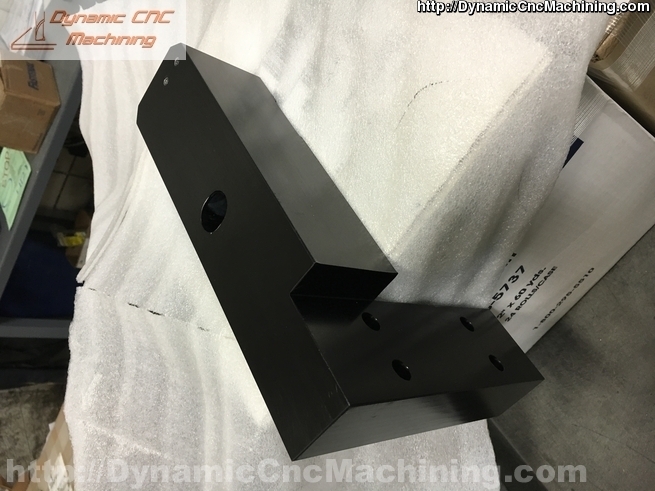

#45	Enlarge Image	Anodized Bracket We can now anodize your aluminum part if you request it.

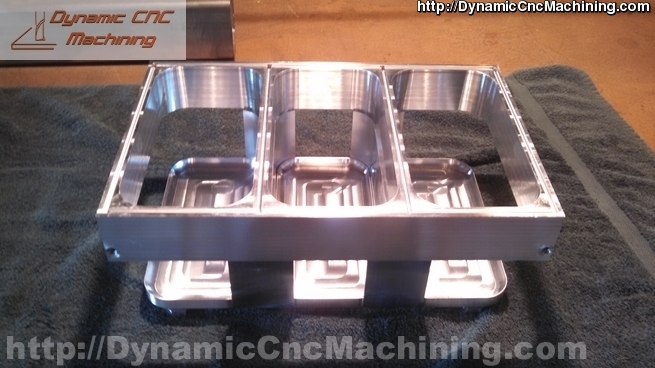

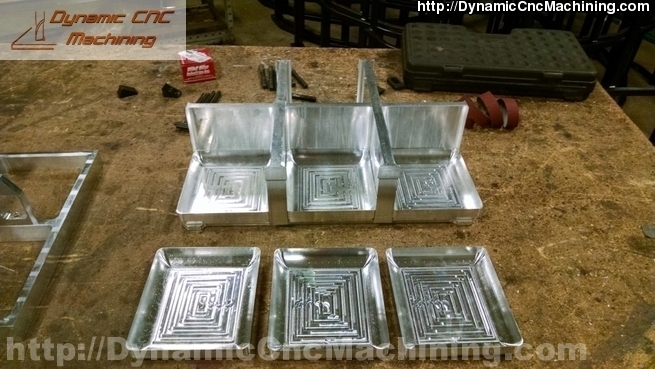

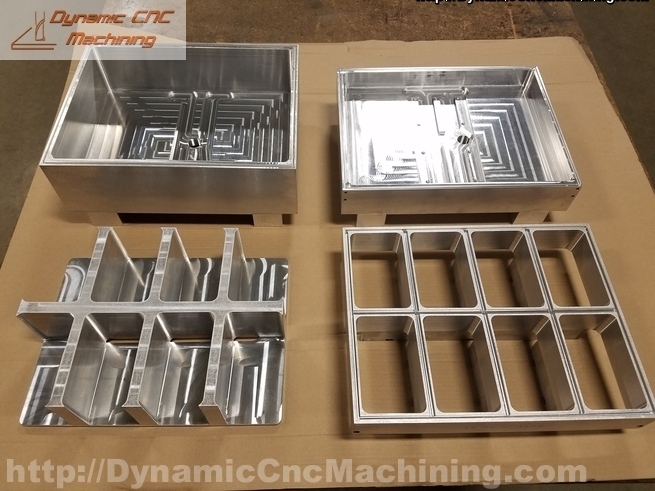

#46	Enlarge Image	3 pocket Seal Frame, Form Grid and Inserts This is a 3 pocket Seal Frame, Form Grid and Inserts for a Multivac machine.
#47	Enlarge Image	Inserts for a Multivac machine These inserts were made for a Mulitvac machine. We ended up adding rare earth magnets on the back side. We also built a tool with rare earth magnets as well so they can lift the inserts out of the pockets.

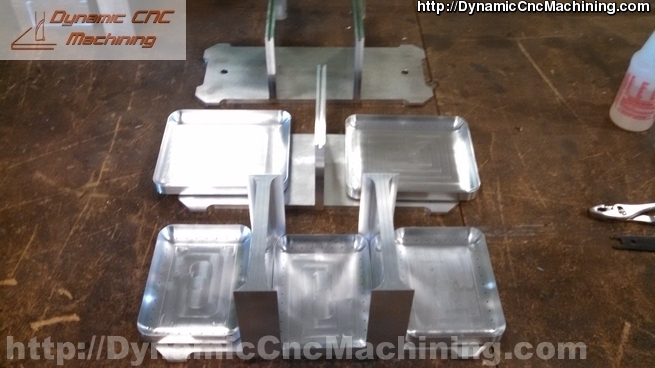

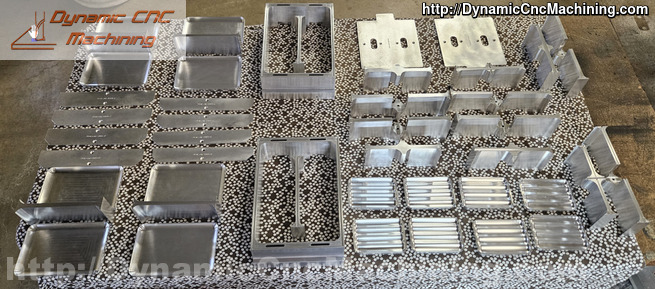

#48	Enlarge Image	Multiple parts for Multivac machine These parts were reverse engineered and are for a Multivac machine. If you need Multivac tooling give us a call

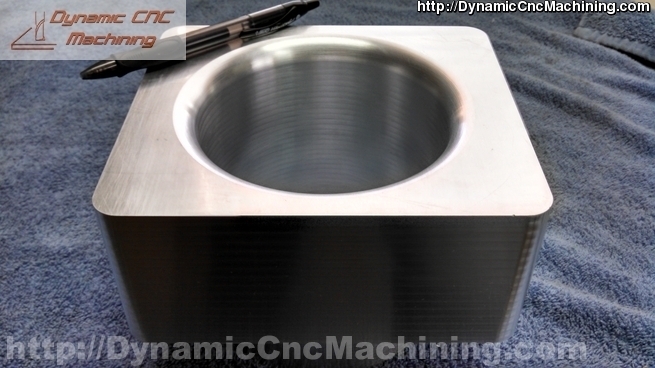

#49	Enlarge Image	Multivac Die Multivac die with a 4.8125 dia hole with a .50 inside edge radius
#50	Enlarge Image	Multivac Guide Customer wanted a special guide made for their Multivac machine.

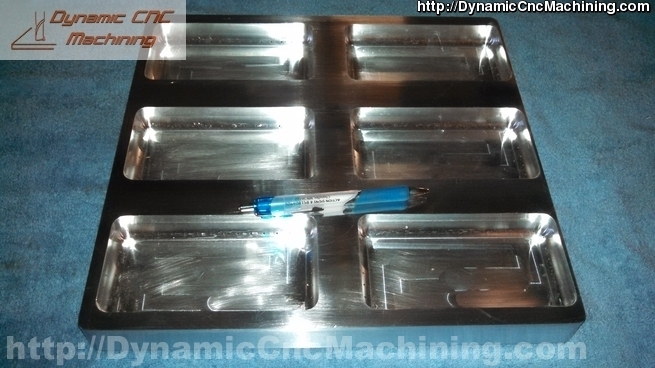

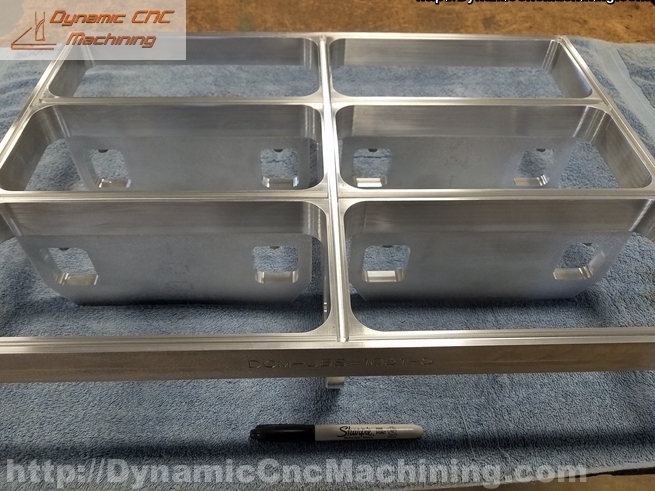

#51	Enlarge Image	6 UP die for Multivac This is a 6 UP die made from one solid piece of aluminum.

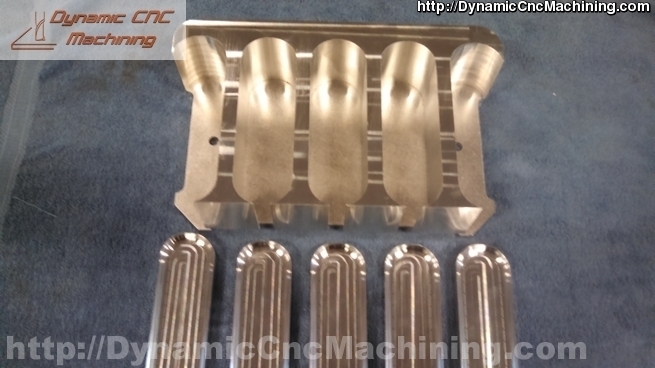

#52	Enlarge Image	Multivac Form Grid with Inserts This is a Multivac form grid with a thick wall on one side and the inserts that drop into it.

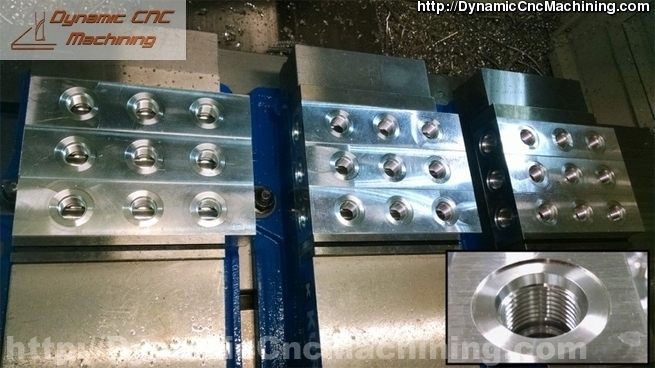

#53	Enlarge Image	Hydraulic Manifolds with SAE-8 ports These are hydraulic manifolds we made with a quantity of 8 SAE-8 ports on each one.
#54	Enlarge Image	Multivac Seal Grid & Form Grid 3 Array This is a Seal Grid, Form Grid and Inserts for a Multivac Machine. Some may refer to them as Multivac dies.

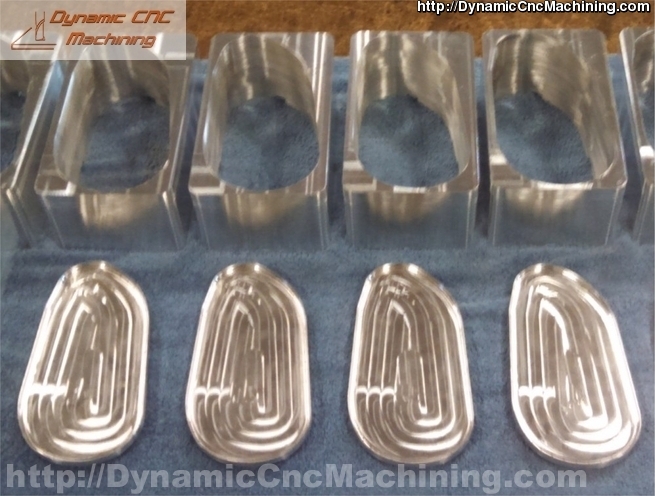

#55	Enlarge Image	Multivac Die and Insert for Rib Eye Steak Customer wanted a more accurate shape of the product so we designed this product. They were very happy with the outcome.

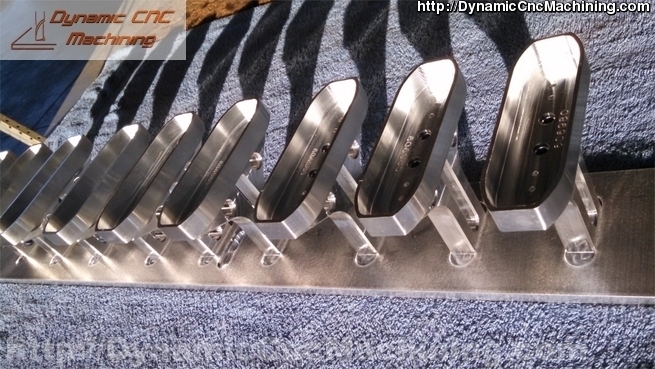

#56	Enlarge Image	Cup Assembly Aluminum bar, stand and cups all machined from 7075-T651 aluminum

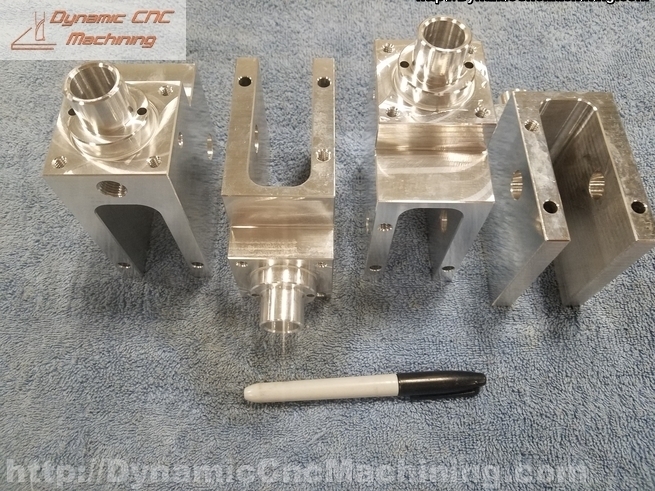

#57	Enlarge Image	Rotary Knife Support for Multivac 5200 Rotary knife supports machined from 7075-t651 aluminum for a Multivac 5200 machine.
#58	Enlarge Image	6 Pocket Die set for a VC999 Model RS5200 This is a 6 pocket Seal Frame, Form Grid and Radius Plates for VC999 model RS5200 machine.

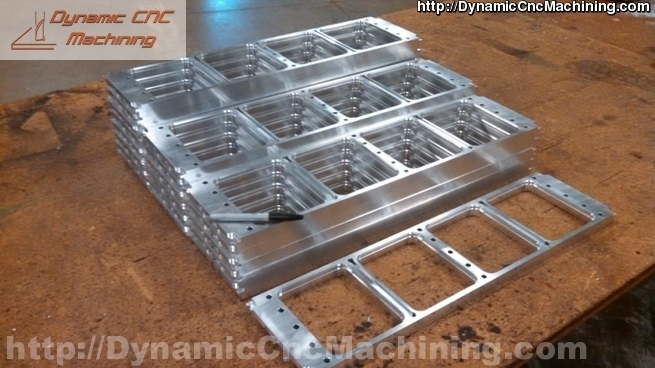

#59	Enlarge Image	Multivac Seal Grid 4 Array This is a Form Seal for a Multi Vac machine that we machined from aluminum.

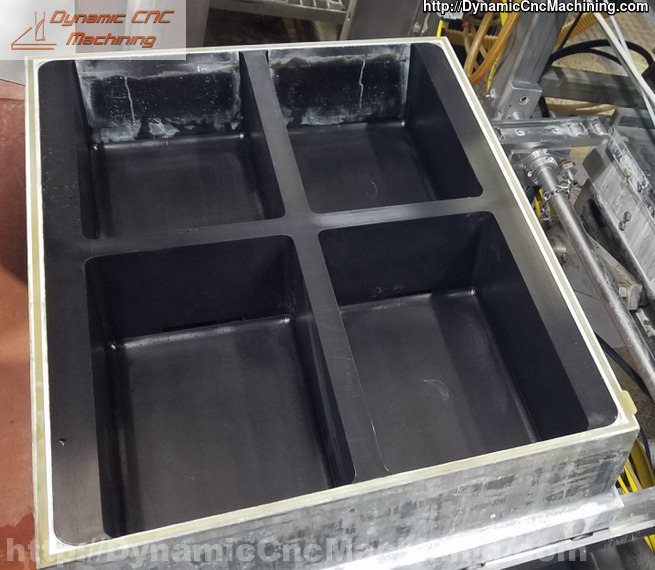

#60	Enlarge Image	Multivac Form Grid 4 Array This is a Form Grid for a Multi Vac machine that we machined from aluminum.
#61	Enlarge Image	Multivac Seal & Form Grid 4 Array Seal & Form Grid 4 Array for a Multi Vac machine.
#62	Enlarge Image	Multivac Seal Grid 6 Array or Multivac Seal Plate This is a Form Seal or Seal Plate for a Multi Vac machine that we machined from aluminum.

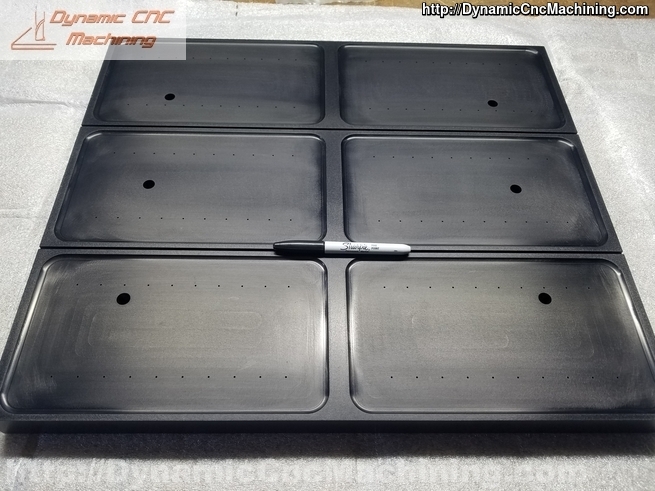

#63	Enlarge Image	Multivac Form Grid 6 Array This is a Form Grid we machined out of aluminum.
#64	Enlarge Image	Multivac Form Grid 6 Array with Inserts This is a Form Grid with inserts for a Multi Vac machine.

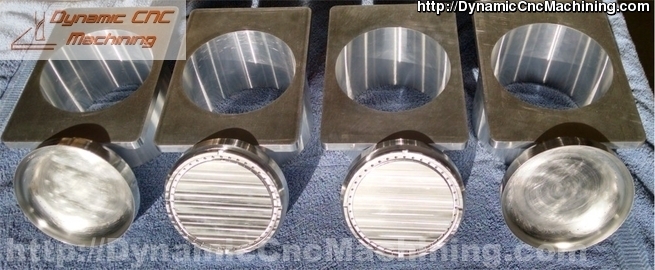

#65	Enlarge Image	Multivac Form Grid Inserts These are inserts for a Multi Vac machine. These measure 5" deep x 7" wide x 10" long with a 6.125" diameter round insert. Some may refer to them as Multivac dies.
#66	Enlarge Image	Multivac Die Die made from 7075-T651 Aluminum Approximate dimensions 15" x 15" x 1.75" thick.

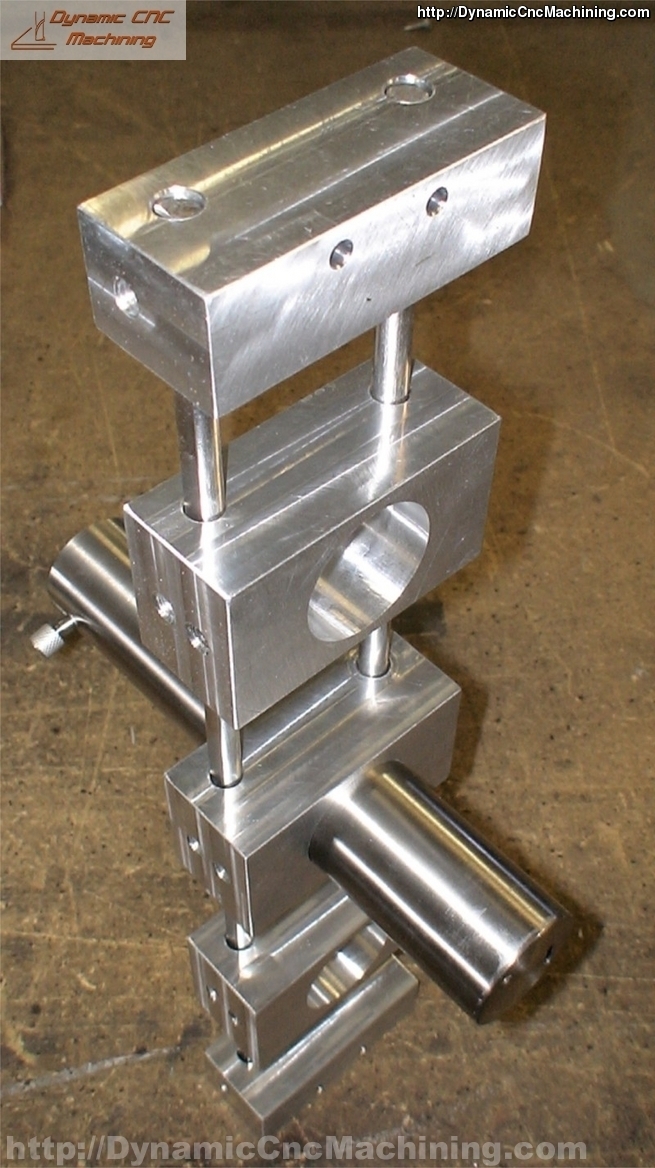

#67	Enlarge Image	Adjustable Video Ink Jet blocks 3 adjustable blocks allow 3 different Video Ink Jet tubes to be installed and located at different heights.

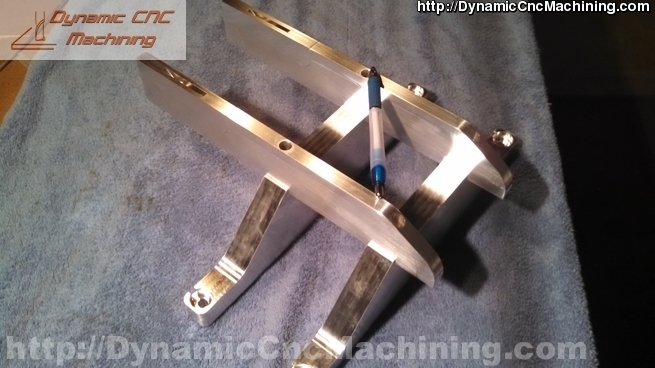

#68	Enlarge Image	Scissor Mechanism

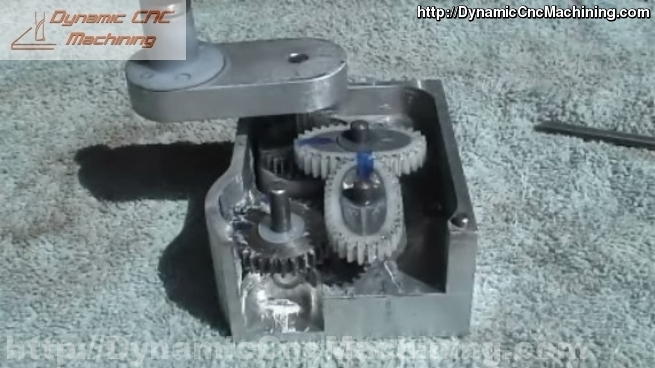

#69	Enlarge Image	Small Gearbox Gearbox we designed and built with small oval gears. This allows the input to turn at one speed but the output will speed up and slowdown at different intervals.

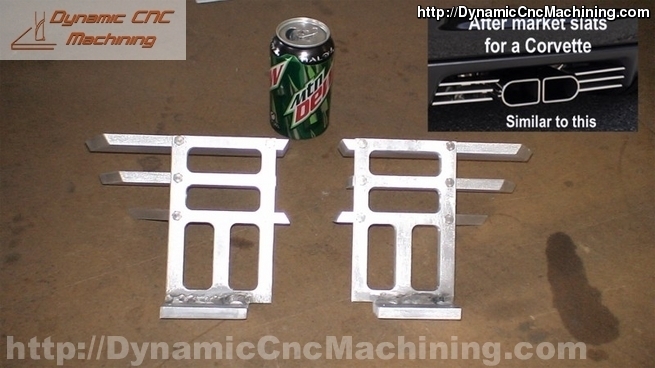

#70	Enlarge Image	Corvette Slats After market slats for a Corvette. Photo shows the back side of the machined parts.
#71	Enlarge Image	Aluminum Fixture 1.25" thick x 10.25" x 15.75" plate machined from 7075T651 aluminum

Notice: Dynamic CNC Machining makes after market parts. We are not associated with or representing any OEM companies and we are not an authorized dealer or distributor of any OEM companies.
